Name: BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines with Fuel Injection BP3505CTFK - electricalmarinesolutions.com
Price: 6998.00 PLN
Availability: InStock

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines with Fuel Injection BP3505CTFK

6 998,00 zł

Crate Engine, Longblock, 350 C.I. Drop In, Fuel Injection, 390 HP, 410 TQ, New Block, Aluminum Heads, Chevy, Small Block, Each

Overview

Brand: BluePrint Engines

Manufacturer’s Part Number: BP3505CTFK

Part Type: Crate Engines

Product Line: BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines with Fuel Injection

Summit Racing Part Number: MLL-BP3505CTFK

UPC: 00887753841209

Crate Engine Family: Chevy Small Block

Actual Engine Displacement: 5.7L/350

Crate Engine Cylinder Head Material: Aluminum

Engine Block Material: Cast iron

Advertised Compression Ratio: 9.2:1

Assembled: Yes

Engine Balance:

Internal/External

Cam Style: Hydraulic roller, OE roller

Rear Main Seal Style: 1-piece

Intake Manifold Included: Yes

Intake Manifold Style: Fuel Injection

Cylinder Heads Included: Yes

Carburetor Included: No

Throttle Body Included: Yes

Distributor Included: Yes

Oil Pan Included: Yes

Valve Covers Included: Yes

Timing Cover Included: Yes

Water Pump Included: Yes

Harmonic Balancer Included: Yes

Flexplate Included: No

Flywheel Included: No

Air Cleaner Included: Yes

Spark Plugs Included: Yes

Spark Plug Wires Included: Yes

Computer Included: Yes

Wiring Harness Included: No

Water Pump Style: Long

Supercharger Included: No

Remanufactured: No

Quantity: Sold individually.

Notes: Does not include fuel pump or lines. This engine is not designed, nor intended to be used in any marine applications. Designed for pre-1976 street vehicles or any off-road vehicle. Engines installed in vehicles registered and normally operated outside of the United States carry no warranty.

Special Attention:

Due to supply chain challenges with this item Blueprint may substitute alternate finishes for the following components: Valve Covers, Timing Covers, Oil Pans, Plug Wires, Water Pumps, Block.

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines with Fuel Injection

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block crate engines with fuel injection are offered in two models—one with new block casting, pulleys, and other extras.

SPECIFICATIONS FOR BOTH MODELS INCLUDE:

* HP and Torque: 390 hp / 410 lbs.-ft.
* Compression Ratio: 9.2:1
* Aluminum Heads
* Hydraulic Roller Cam
* Cast Iron Crankshaft
* Hypereutectic Pistons

* BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA
4-Bolt Main
4.000 in. Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

* ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480 in. Stroke
Forged 5.700 in. connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance

* CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads
64cc chamber
2.02 in. intake/1.60 in. exhaust valves
195cc intake/75cc exhaust runners

* CAM SPECS:
Cam Type: Roller
.495 Intake .502 Exhaust
220 Intake / 224 Exhaust duration
@ .050 – 114 degree lobe separation

* IGNITION TIMING:
32 Degrees Total at 3,500 rpm

* ALSO INCLUDES:
Valve covers
Oil pan
Timing cover
Harmonic Balancer
Thermostat and Water neck
Aluminum intake
HEI distributor
Spark plugs and wires
EFI system
Dyno test results shipped with engine

INCLUDED ONLY ON MODEL BP3505CTFD:
* Standard rotation long water pump

INCLUDED ONLY ON NEW BLOCK CASTING MODEL BP3505CTFK:

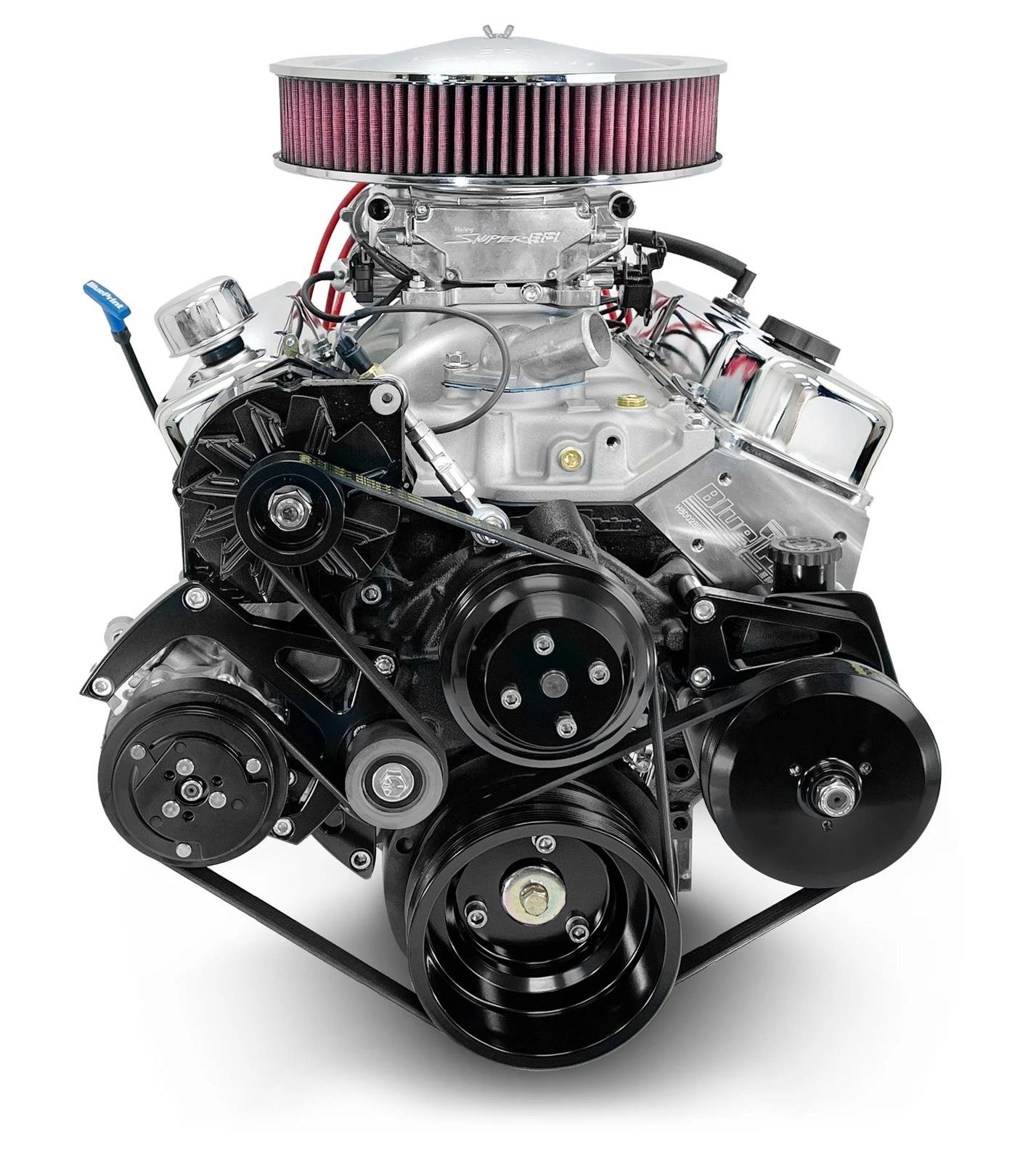

* Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump (does not fit Corvette)

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines with Fuel Injection BP3505CTFK
