BluePrint Engines GM 327 C.I.D. 350 HP Fully Dressed Long Block Crate Engines BP327CTCV

Overview

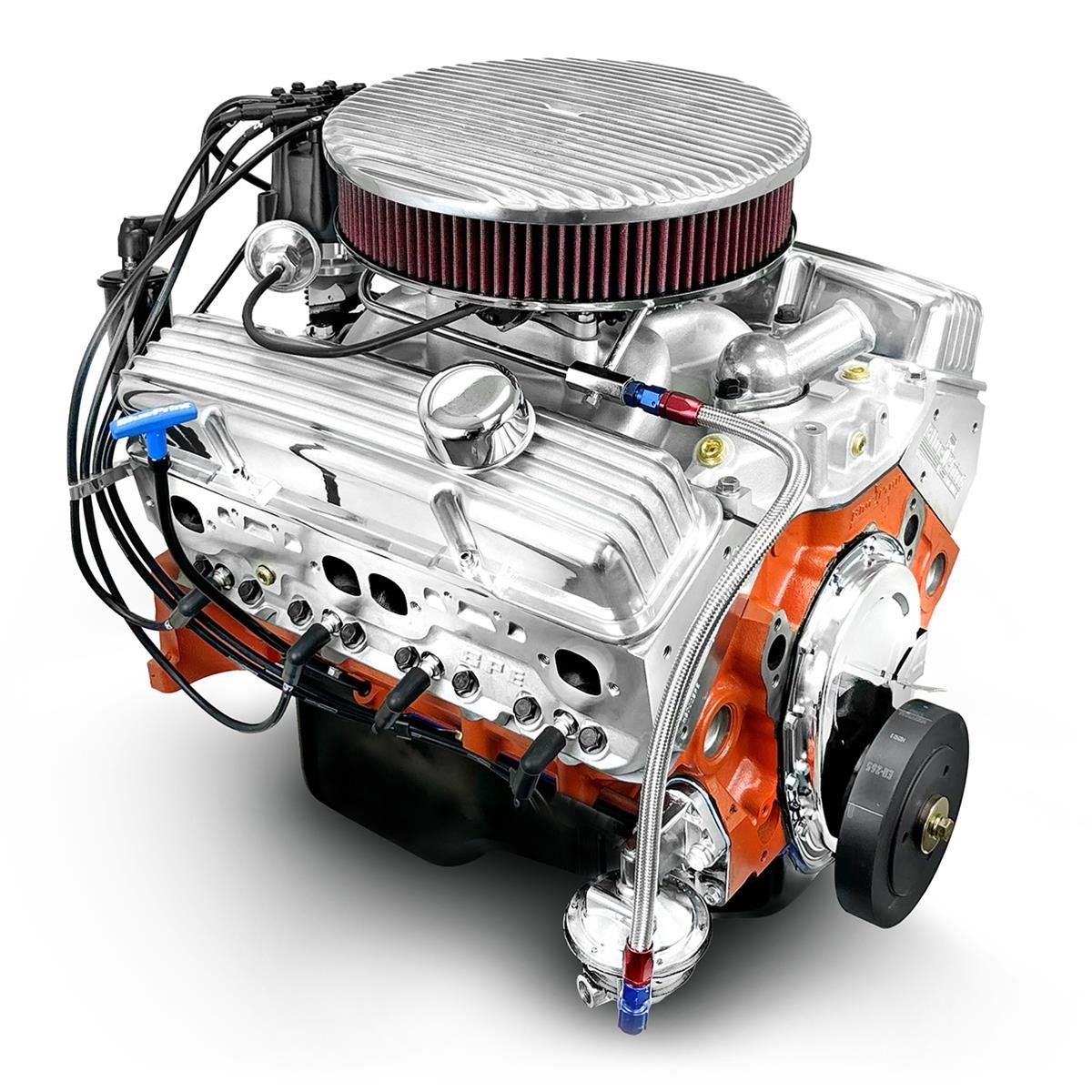

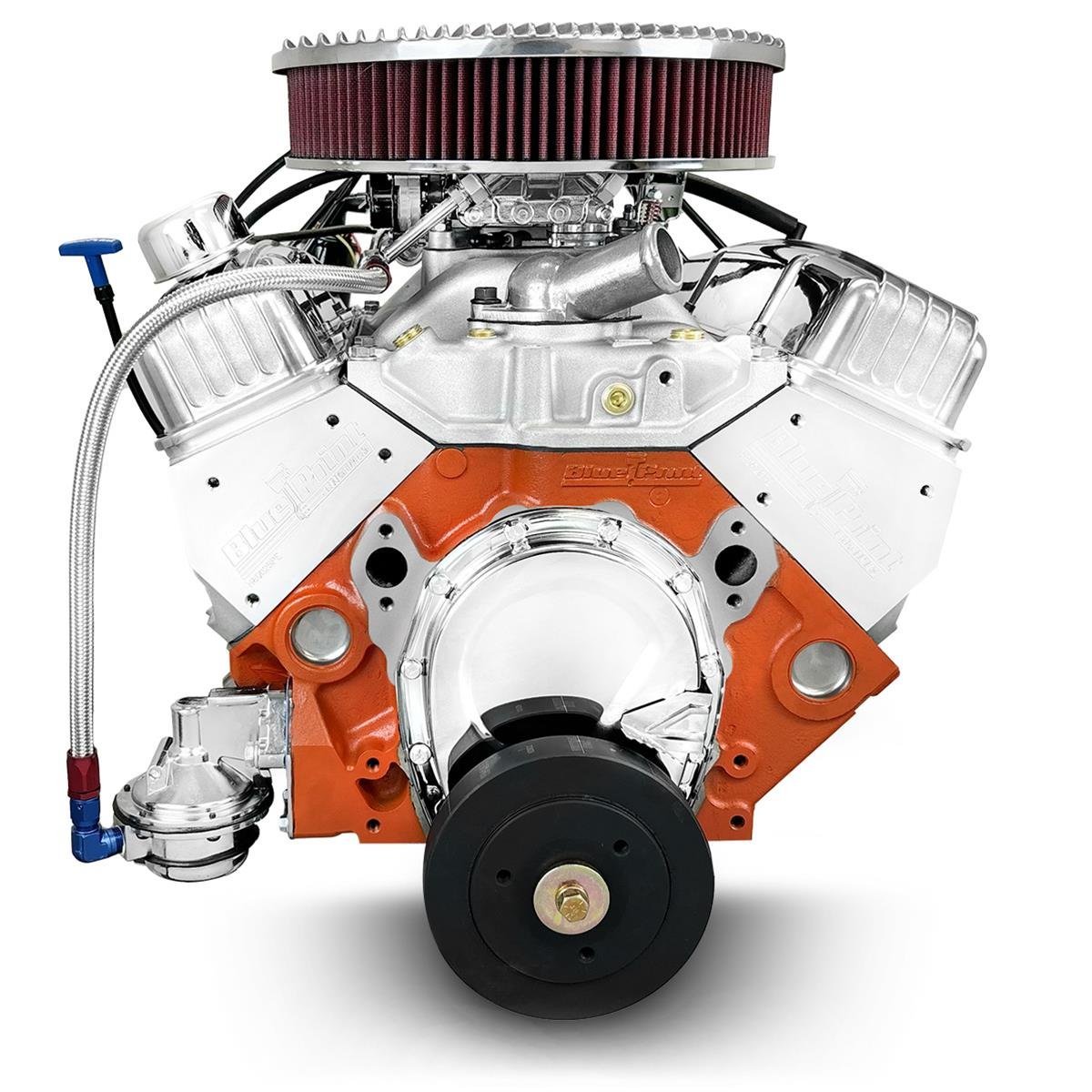

BluePrint Engines GM 327 C.I.D. 350 HP Fully Dressed Long Block Crate Engines

BluePrint Engines GM 327 c.i.d. 350 hp fully dressed long block crate engines are available with a Holley Sniper EFI system or a 670 cfm carburetor with electric choke. Both versions are also offered with or without a polished front pulley.

BASIC ENGINE SPECS:

* HP and torque: 350 hp / 350 lbs.-ft.
* Compression ratio: 9.4:1
* Aluminum heads
* Hydraulic roller cam
* Forged crank
* Hypereutectic pistons

BLOCK:

* NEW BluePrint cast iron block
* 4-bolt main
* 4.000 in. bore
* 1-Piece rear main seal
* Mech fuel pump provision: Yes
* Passenger side dipstick
* Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

* New BluePrint forged crankshaft
* 3.250 in. stroke
* Forged 5.700 in. connecting rods with 150,000 psi bolts
* Hypereutectic pistons
* Internal Front / External Rear

CYLINDER HEADS:

* BluePrint aluminum cylinder heads
* 64cc chamber
* 2.02 in. intake/1.60 in. exhaust valves
* 195cc intake/75cc exhaust runners

CAM SPECS:

* Cam Type: Roller
* .495 Intake .502 Exhaust
* 220 Intake / 224 Exhaust duration
* At .050, 114 degree lobe separation angle

IGNITION TIMING:

* 32-34 degrees total at 3500 rpm

ALSO INCLUDES:

* Premium Vintage valve covers
* Premium Vintage air cleaner
* 6.75 in. harmonic balancer
* Spark plugs
* Under header spark plug wires (perfect for Rams Horn exhaust manifolds)
* Oil pan
* Timing cover
* Aluminum Intake manifold
* Small cap ready-to-run distributor equipped with Tach Drive and coil
* Dyno tested and shipped with results
* Warranty: 30 month / 50,000 mile
* Front accessory drive with water pump, A/C compressor, alternator, and power steering pump

NOTES:

* Not for use in pollution-controlled vehicles.
* The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
