Overview
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-15845-D
Part Type: Disc Brake Kits
Product Line: Wilwood Superlite 4R Rear Electronic Parking Brake Kits
Summit Racing Part Number: WIL-140-15845-D
UPC: 889545092714
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Axle Housing Flange Style: Big Ford New Style/Torino (3.562 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 1.11
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Electric caliper
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

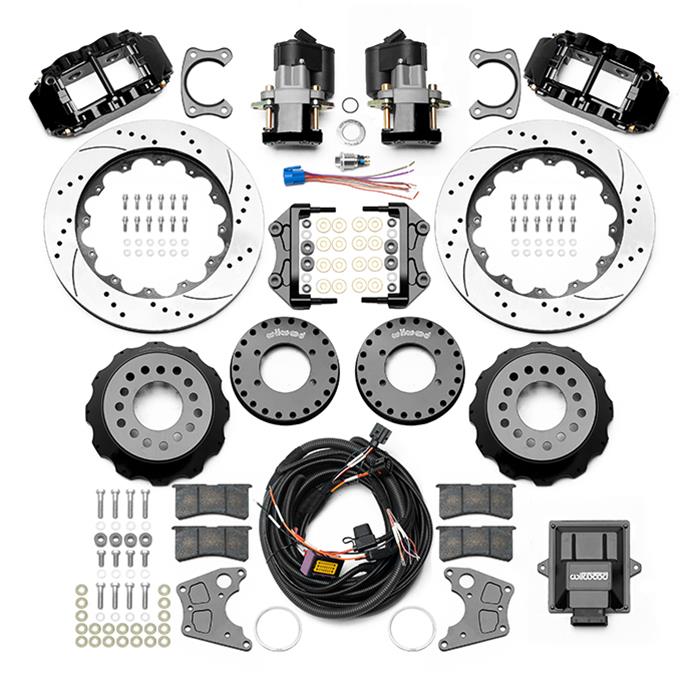

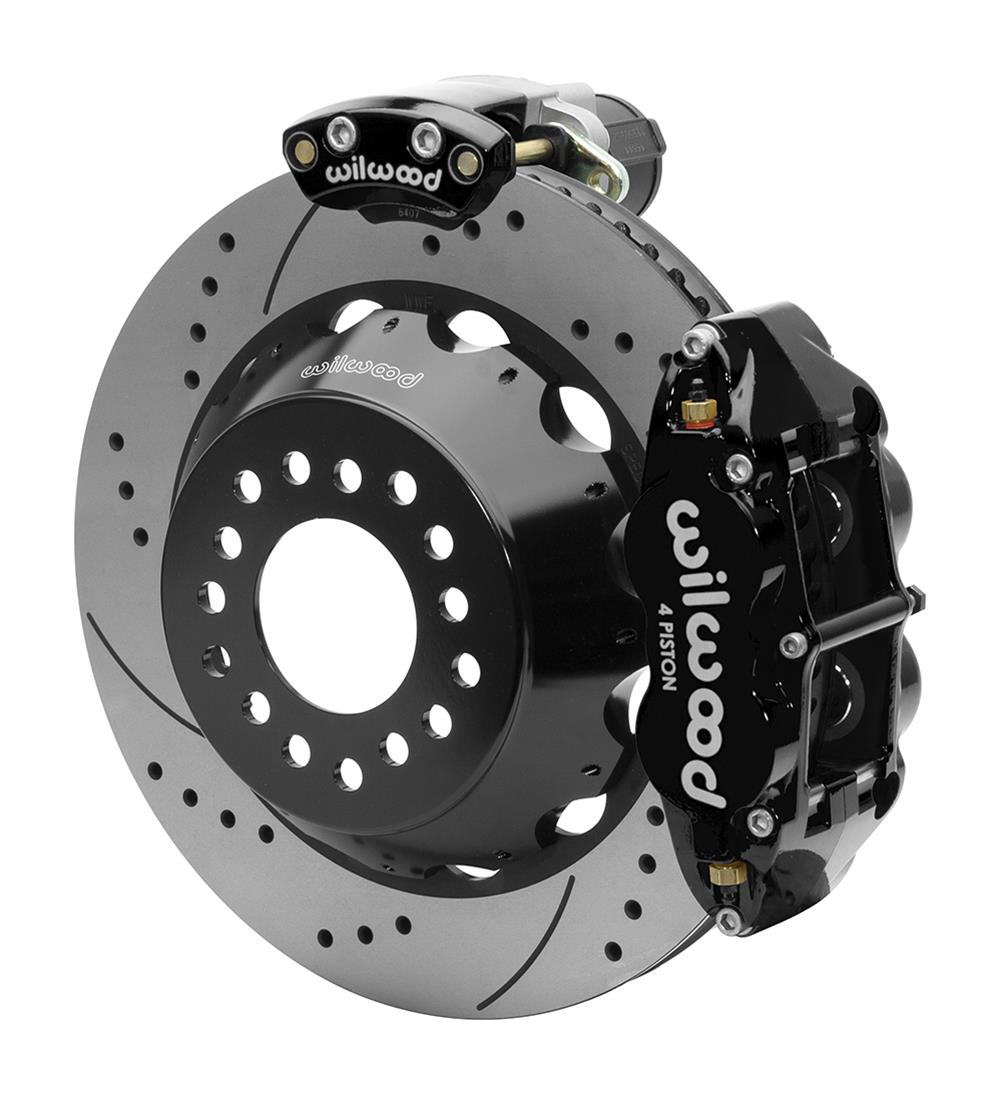

Wilwood Superlite 4R Rear Electronic Parking Brake Kits
Wilwood Superlite 4R rear electronic parking brake kits provide the ultimate Big Brake solutions for popular muscle car rear axles that require a parking brake. Forged narrow Superlite 4-piston calipers, along with 13 in. or 14 in. 2-piece rotors and high performance BP-10 compound pads provide optimized and balanced braking to complement front big brake upgrades on all types of custom, show, and high performance street machines. The unique electronic parking brake calipers provide high-torque static holding power for parking without mechanical cabling. Wilwood Superlite 4R kits are supplied with a control unit and harness assembly to simplify installation and use.
