Overview
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-15156-D
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits
Summit Racing Part Number: WIL-140-15156-D
UPC: 889545074932
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled/Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.00 in./355.60mm
Front Rotor Thickness (in.): 1.10 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 127.00mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 0.680 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Includes 1/2 in.-20 wheel studs. For use with Wilwood ProSpindle brake spindles.

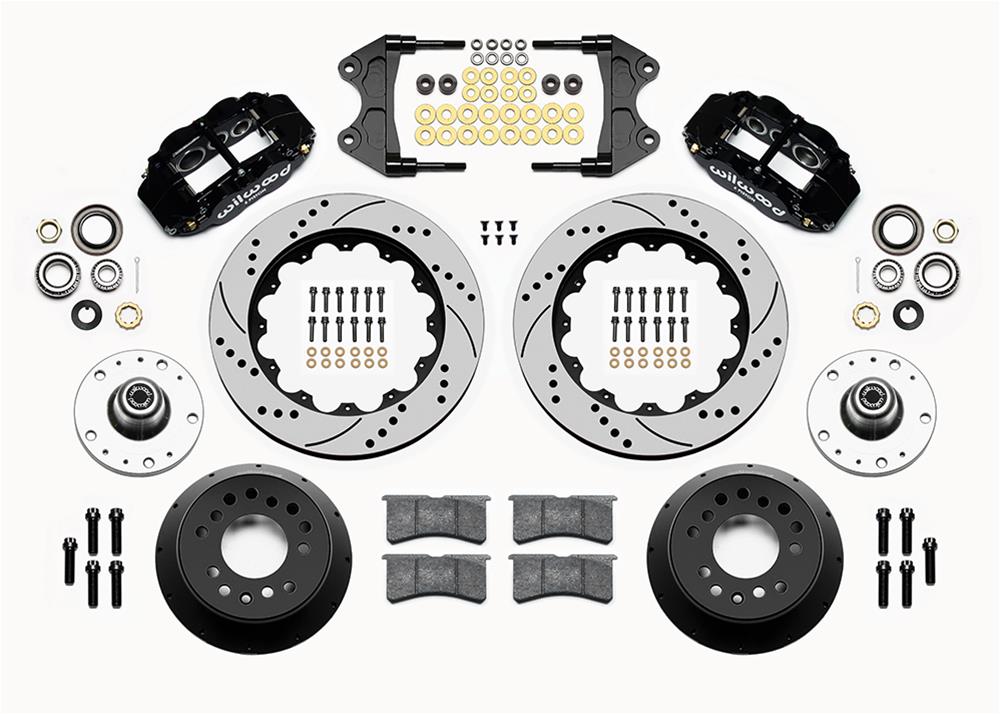

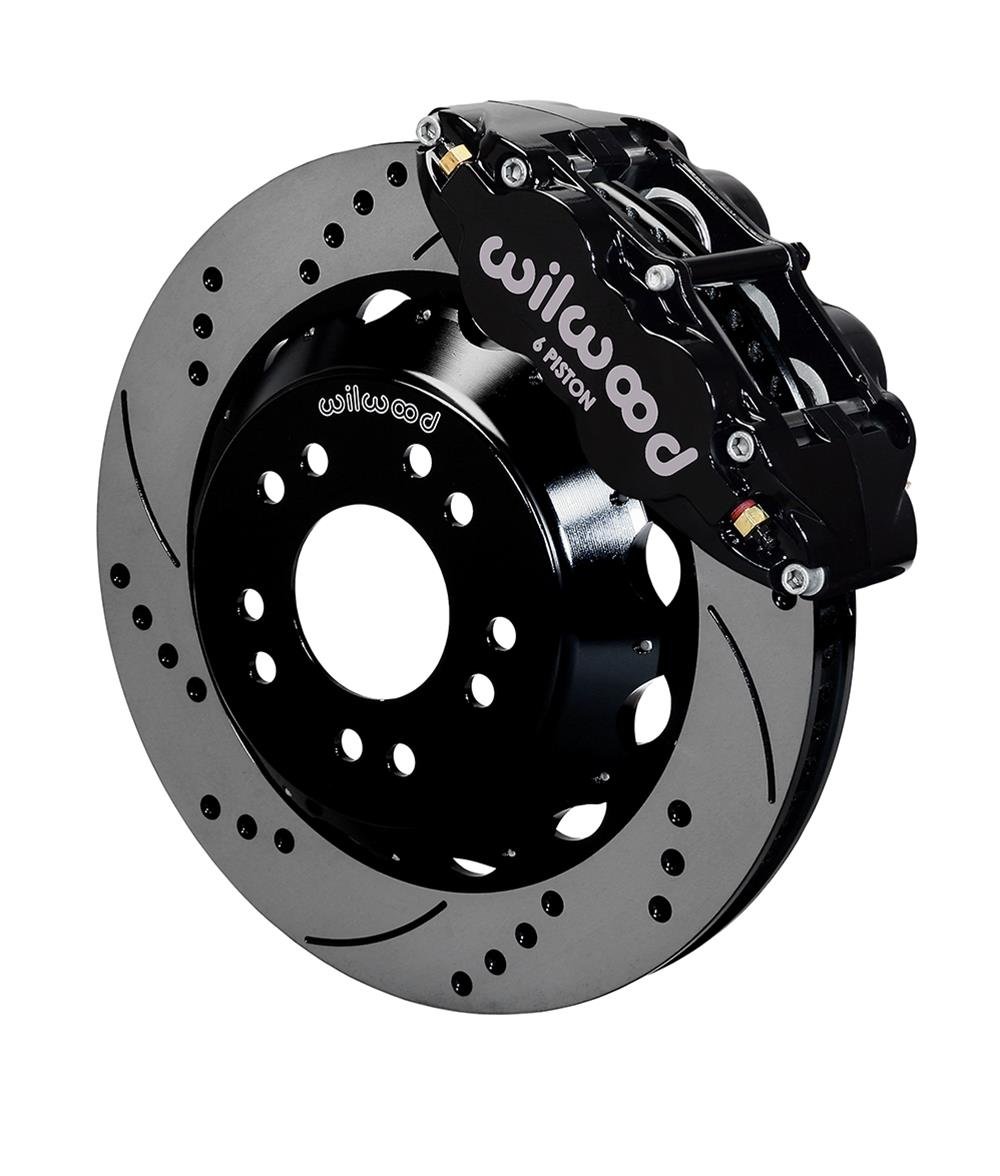

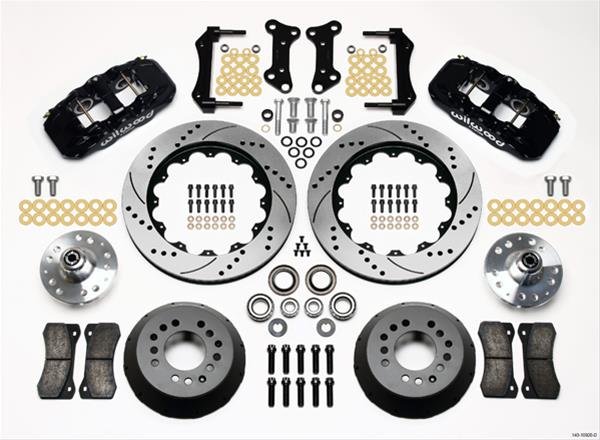

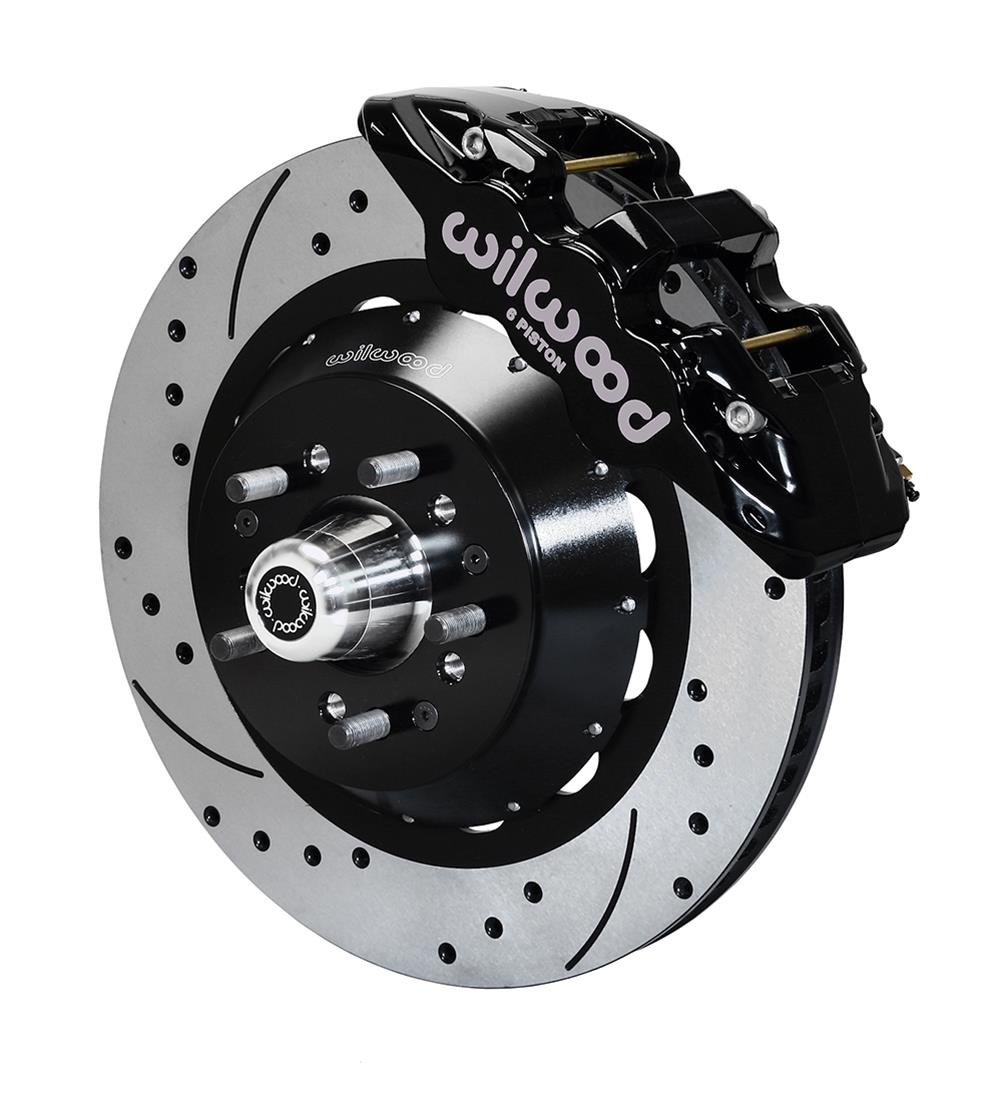

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits
Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They’re application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don’t just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.
