Tremec Magnum-F Manual Transmissions TUET17638

Overview

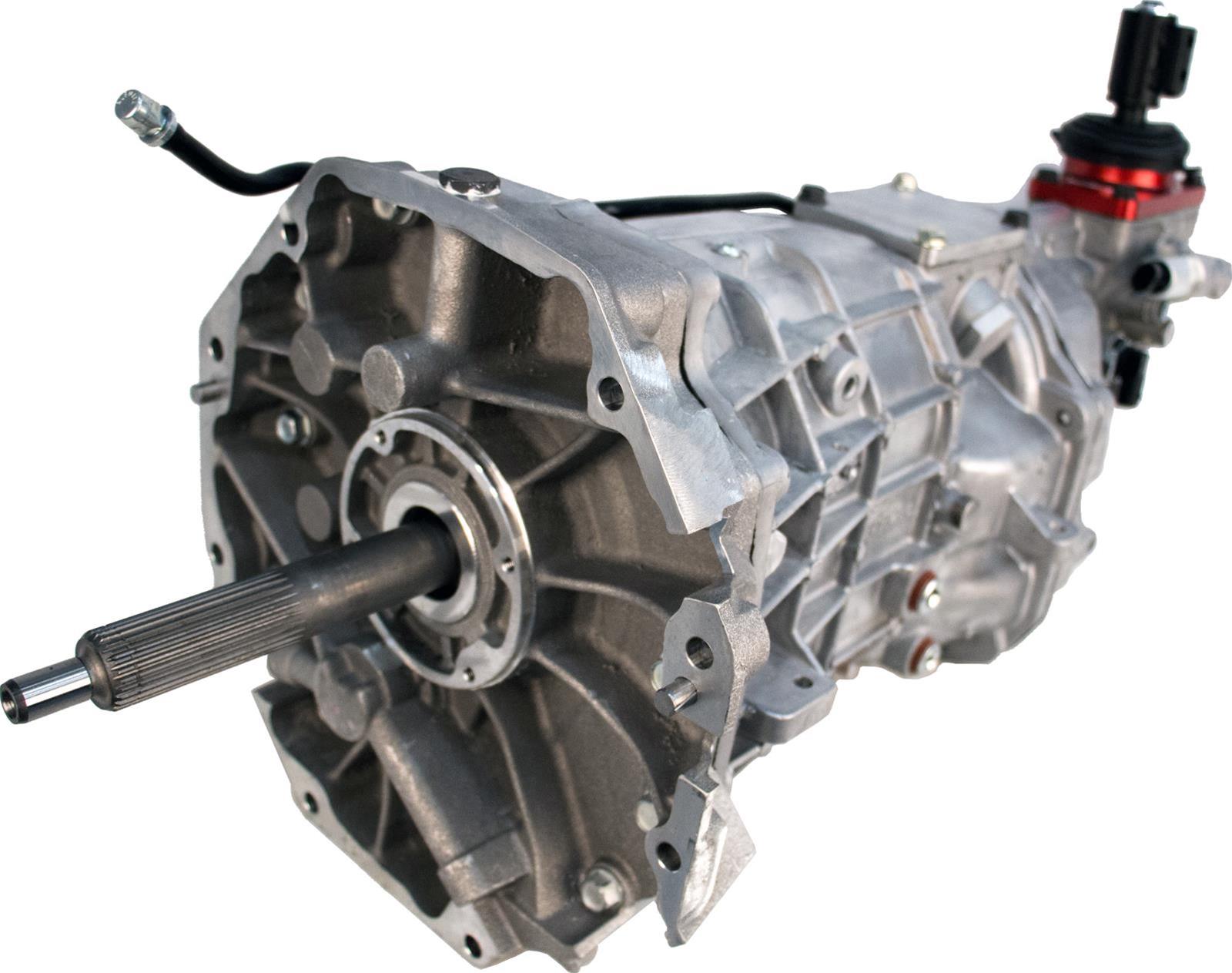

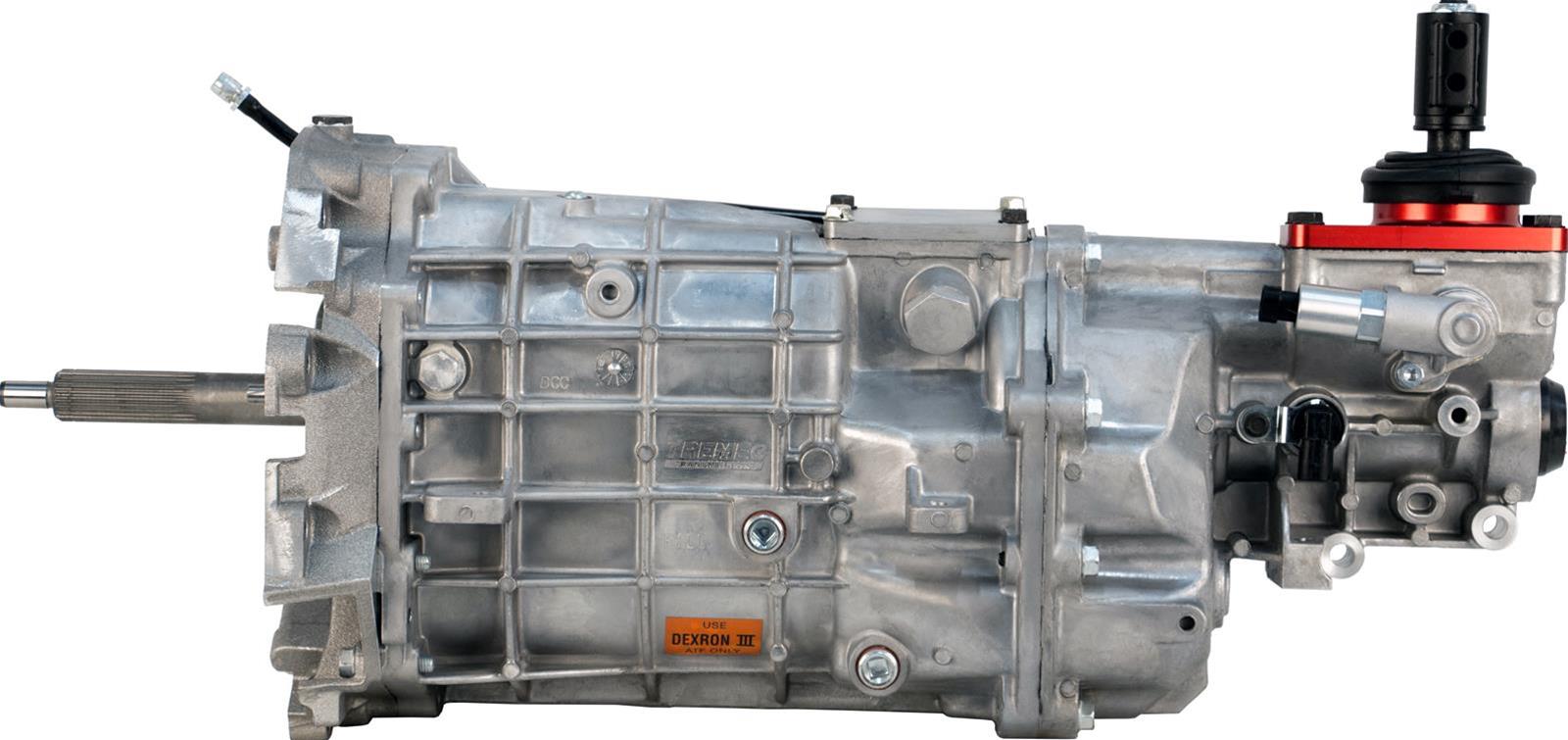

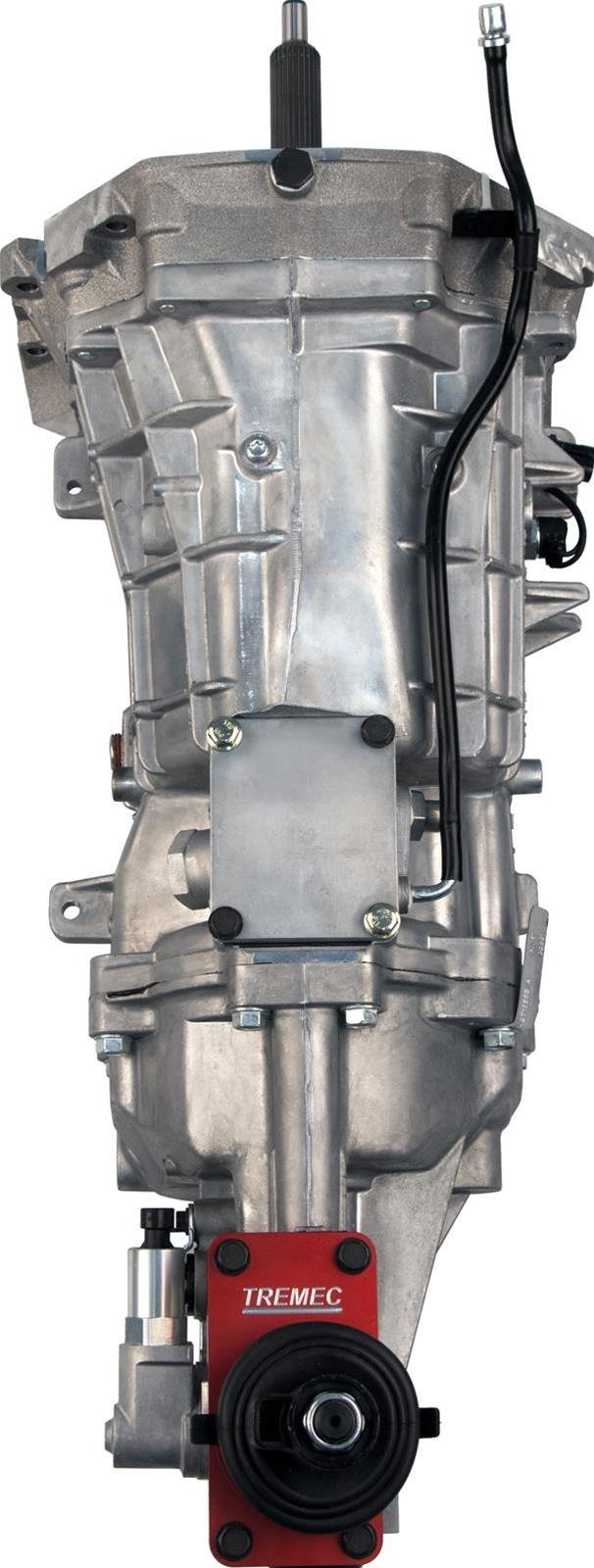

Tremec Magnum-F Manual Transmissions

Tremec introduces the Magnum-F 6-speed manual transmissions for fourth-generation Camaros and Firebirds. Designed to replace T-56 transmissions in 1998-2002 GM F-body cars, the Magnum-F leverages Tremec’s pervasive TR-6060/Magnum architecture in order to provide fourth-gen enthusiasts significantly improved performance and relief from a shrinking pool of quality T-56 replacement parts.

Born in the vacuum created by the release of the original T-56 Magnum (now known simply as ‘Magnum’) back in 2009, the Magnum-F fills a longstanding void in the overall Magnum line with regard to shifter locations—addressing not only LS1-powered ’98-’02 F-bodies, but several other applications that utilize a similar shifter position. Beneficiaries include third-generation F-bodies, LT1-powered fourth-gens, LS-swapped late models of all varieties, and sport compact applications such as A80 Supras, FD RX-7s, and more! Where the original Magnum shifter locations may prove too far forward, and the extended length Magnum XL’s too far back, the Magnum-F’s in-between position often proves to be just right.

Inside, the Magnum-F benefits from the same durable componentry found in many of today’s hardest hitting OEM muscle and sports cars. Over the T-56, the Magnum-F transmissions boast increased face-width on all gears, a robust combination of double and triple cone synchronizers, enhanced webbing in the main case, provisions for a cooler circuit, and more! Tremec also took the opportunity to upgrade the shifter to an isolator-type unit, like that found on its Magnum XL. The shifter reduces in-cabin noise and vibrations, while at the same time providing the precise and communicative shift feel that all Magnums are known for. And, like all Tremec aftermarket transmissions, the Magnum-F is made from 100 percent brand-new OEM-quality content. Models with different gear ratios are available.

Additional notes:

* Close Ratio version for high performance street and road racing
* 700 lbs.-ft. of torque capacity
* Reasonably light at 135 lbs. dry
* Multiple shifter locations and dual speedo pickups for unmatched versatility
* Choice of two different gear ratio sets with unique double overdrive ratios
* Incredibly short, extremely low-effort shift throws, with crisp, precise engagement
* Modern OE supercar technology for the ultimate pro-tourers, road-racers, and more
