Brand: RideTech
Manufacturer’s Part Number: 11560201
Part Type: Suspension Handling Packages
Product Line: RideTech Corvette Coilover Suspension Systems
Summit Racing Part Number: ART-11560201
UPC: 840123507273
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes
Front Shock Type: Single adjustable monotube coilover
Rear Shocks/Struts Included: Yes
Rear Shock Type: Single adjustable monotube coilover
Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Hollow
Front Sway Bar Diameter (in.): 1.250 in.
Front Sway Bar Diameter (mm): 31.75 mm
Rear Sway Bar Included: Yes
Rear Sway Bar Color: Black
Rear Sway Bar Type: Hollow
Rear Sway Bar Diameter (in.): 1.000 in.
Rear Sway Bar Diameter (mm): 25.40 mm
Tie Rod Sleeves Included: No
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: No
Lower Trailing Arms Included: No
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: No
Lower Control Arms Included: No
Front Strut Tower Bar Included: No
K-Member Included: No
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Bushing Material: Delrin®
Bushing Color: Black
Mounting Hardware Included: Yes
Quantity: Sold as a kit.

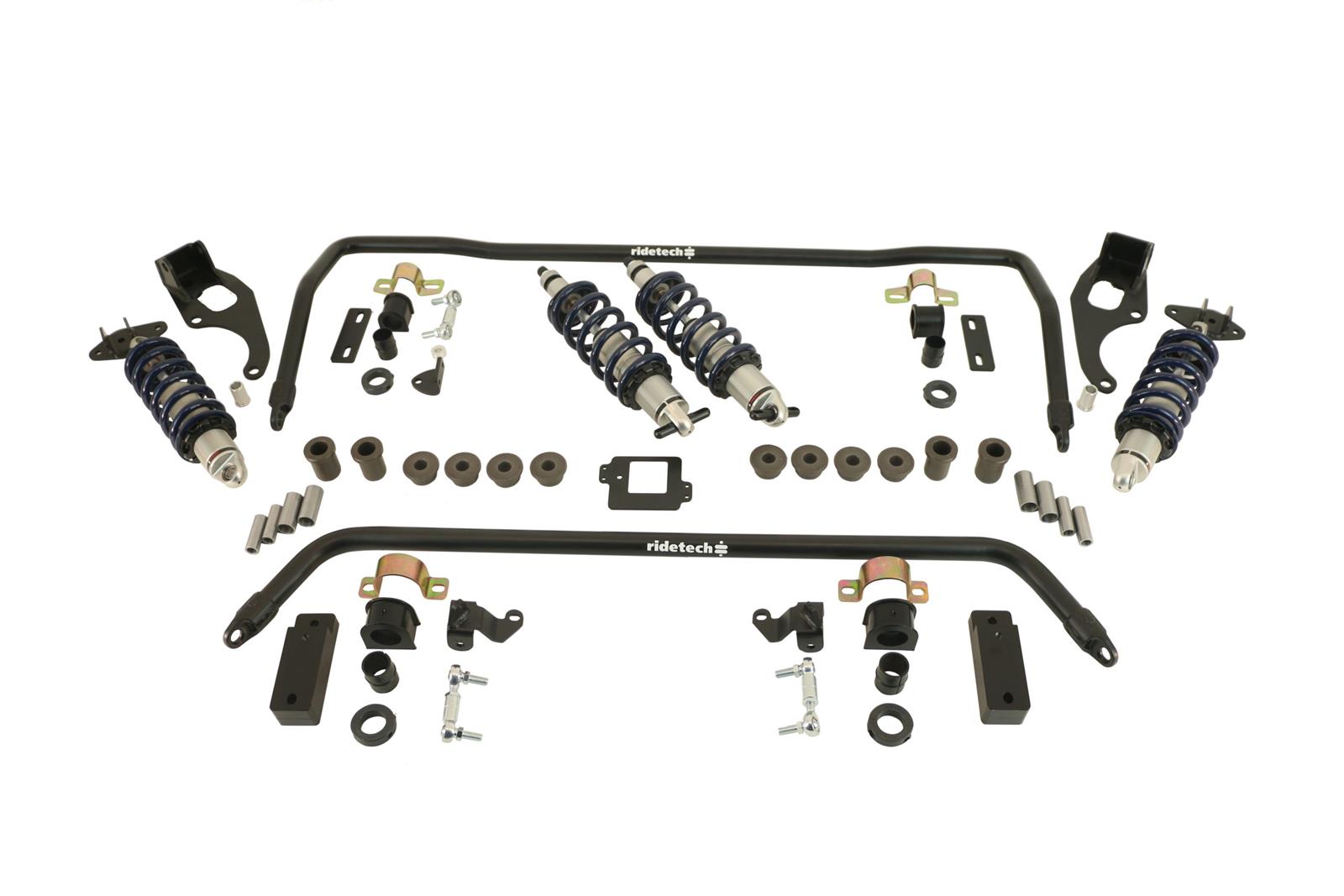

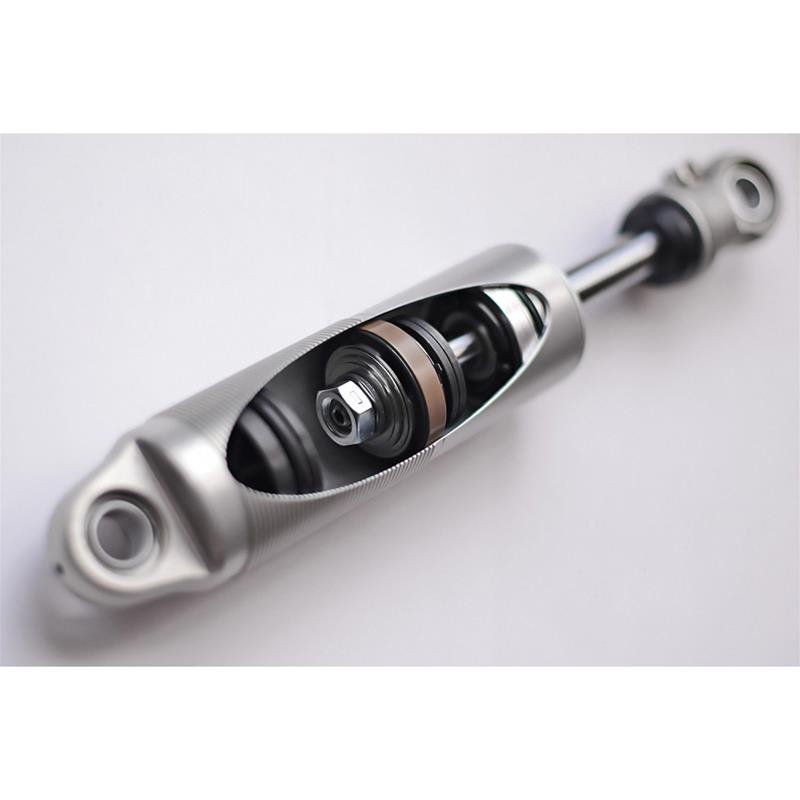

RideTech Corvette coilover suspension systems include MuscleBar sway bars, Delrin control arm bushings, and powdercoated conversion brackets. The 100 percent bolt-on kit will significantly improve your Corvette’s handling, while giving you control over ride-height adjustment. RideTech engineers custom-tailored the system’s HQ Series shock absorber valving for modern, world-class ride quality. Rebound adjustment knobs help you fine-tune ride and handling to your driving style and tire selection. For the ultimate track experience, upgrade to the TQ Series coilovers with a remote reservoir for high and low speed compression adjustments.

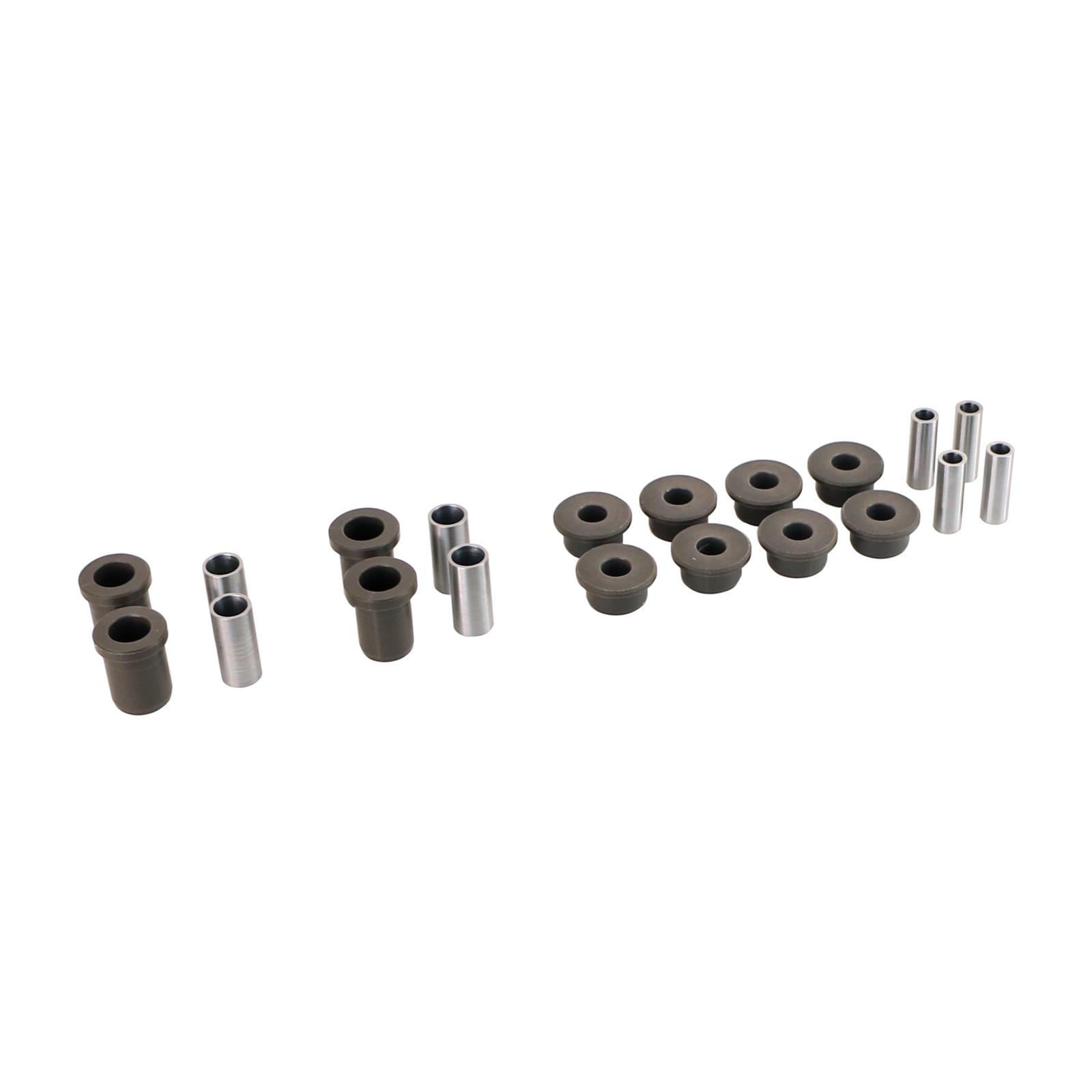

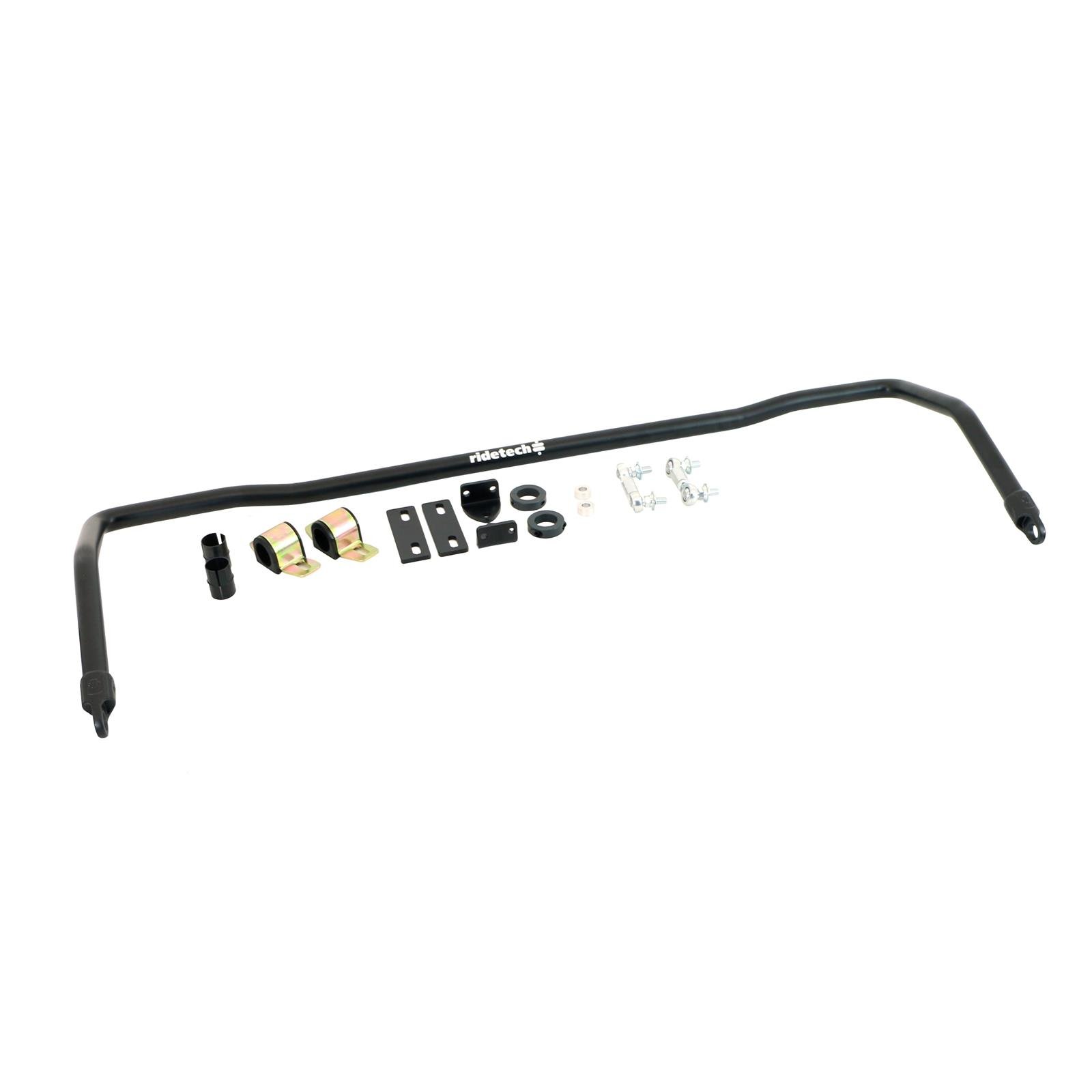

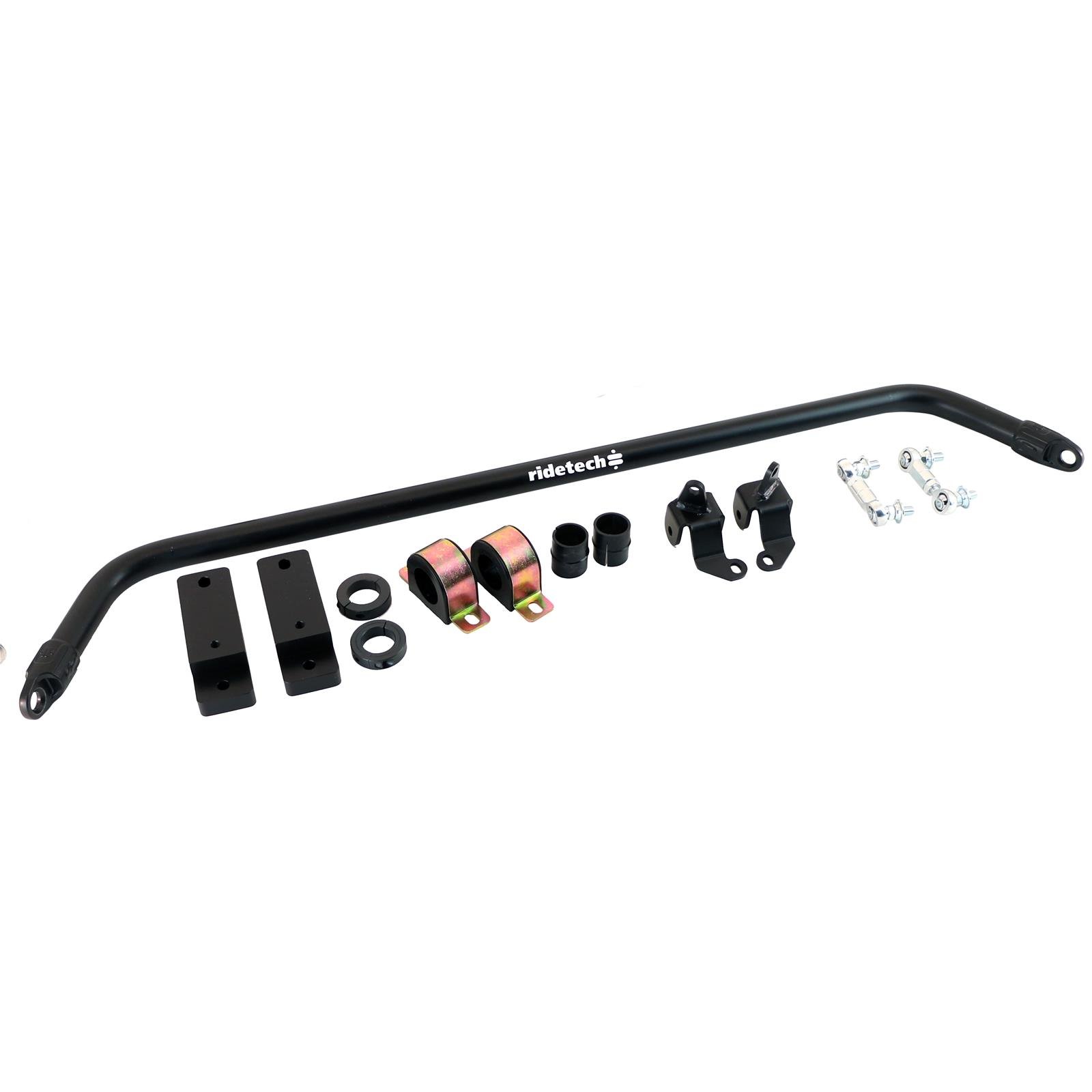

RideTech’s CNC-bent MuscleBar sway bars increase bar rate over stock, allowing for more comfortable, compliant coil spring rates. MuscleBars feature investment cast bar ends that perfectly engage end-link bushings as your Corvette’s cornering loads change. Delrin-lined mounting bushings never squeak or need lubricating. The same is true for the kit’s Delrin A-arm bushings. Overall, the C4 Corvette coilover conversion systems offer tremendous bang for the buck with real-world improvements. They’re a game changer for the C4 Corvette platform. (Included shock absorbers carry a 1,000,001 mile warranty.)
