Overview
Brand: Bowler Performance Transmissions
Manufacturer’s Part Number: 1047000
Part Type: Automatic Transmissions
Product Line: Bowler Performance Tru-Street Series Automatic Transmissions
Summit Racing Part Number: BTM-1047000
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Automatic
Torque Converter Included: Yes
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Advertised Flash Stall Rating: 2,400-2,800 rpm
Trans-Brake Included: No
Lockup Compatible: Yes
Transmission Pan Style: Stock
Transmission Pan Material: Steel
Transmission Pan Finish: Gray
Tailshaft Length (in.): 9.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 30
Input Shaft Material: Steel
First Gear Ratio (Automatic Transmissions): 3.06
Clutch Hub: Steel/Aluminum
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Gray
Transmission Shield Built In: Yes
Flexplate Shield Built In: Yes
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually.

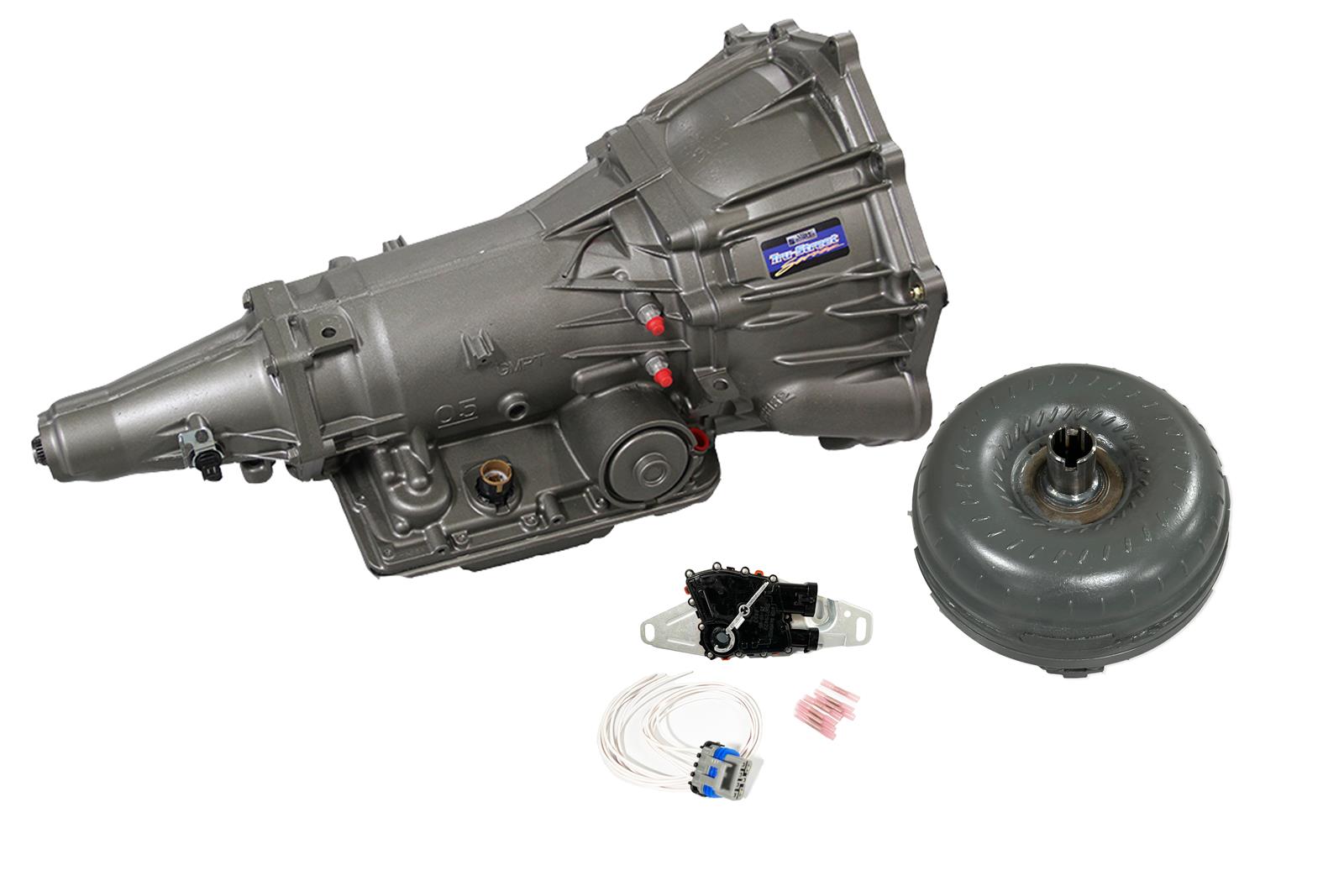

Special Attention: Includes 4L70E transmission and 2,400-2,800 rpm stall torque converter for LS based small block engine.
Bowler Performance Tru-Street Series Automatic Transmissions
Building transmissions since 1963, Bowler believes in detail, and each of their Tru-Street automatic transmissions are fully remanufactured (not “rebuilt”) by one qualified technician, dyno tested, and then custom packaged for safe shipping. The Tru-Street Series includes torque converter and may include other components, as well. Choose the one you prefer.
