Name: BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Dressed Long Block Crate Engines PS6320CTC - electricalmarinesolutions.com
Price: 14688.00 EUR
Availability: InStock

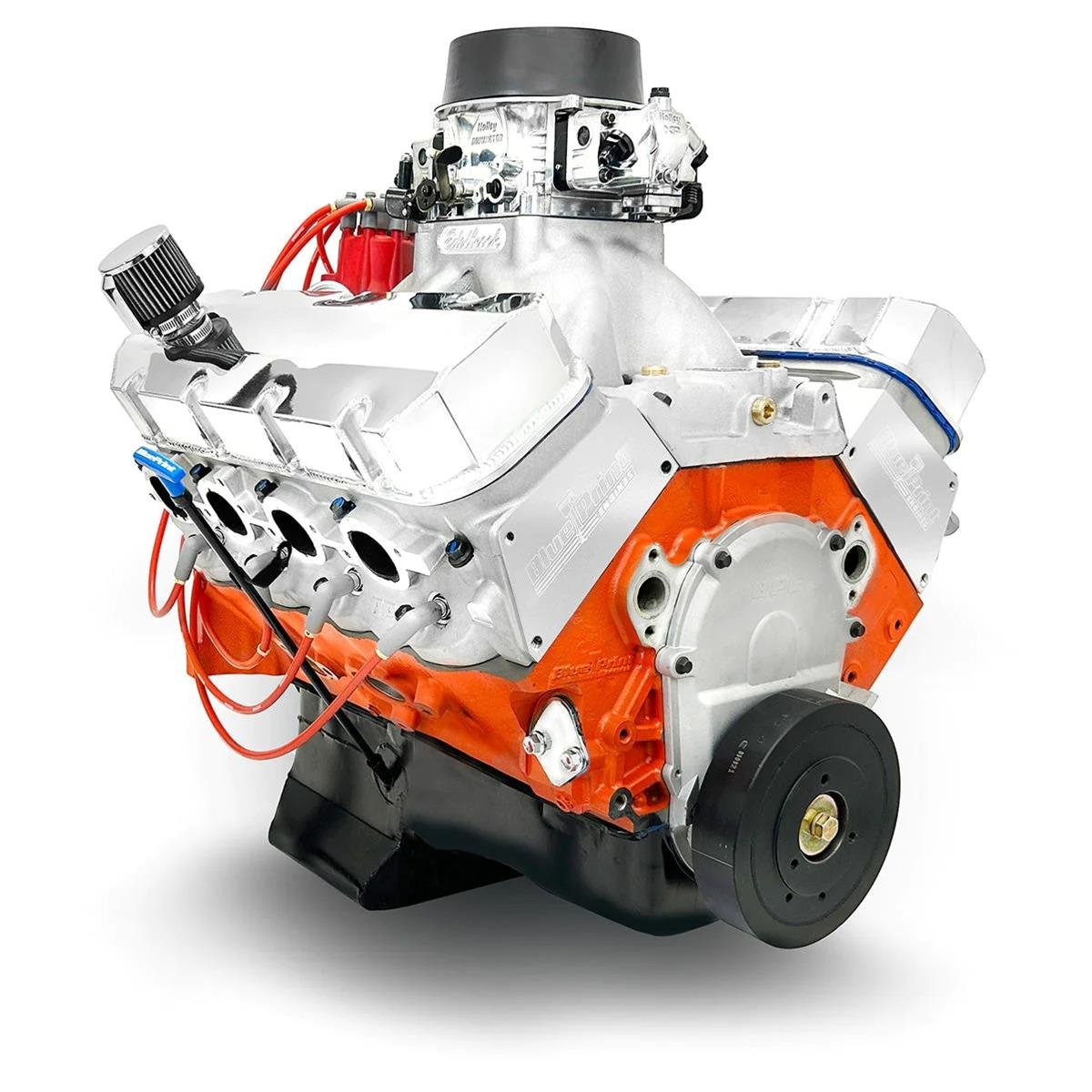

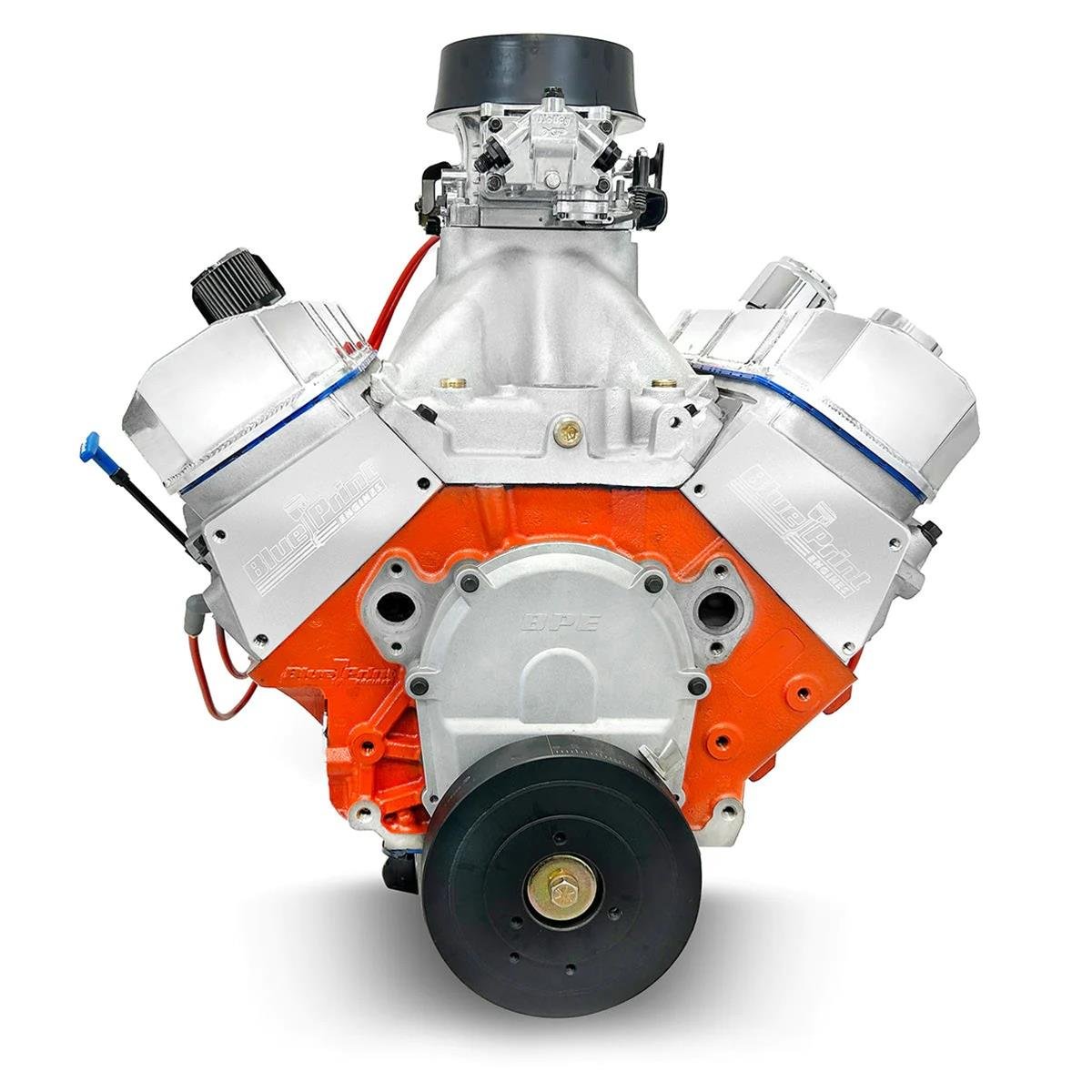

BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Dressed Long Block Crate Engines PS6320CTC

€14,688.00

Crate Engine, Dressed Long Block, Pro Series Chevy 632 C.I.D. 815 HP, Carbureted, Internal Balance, Aluminum Cylinder Heads, Chevy, Tall Deck, Each

Overview

Brand: BluePrint Engines

Manufacturer’s Part Number: PS6320CTC

Part Type: Crate Engines

Product Line: BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Dressed Long Block Crate Engines

Summit Racing Part Number: MLL-PS6320CTC

UPC: 00887753744531

Crate Engine Family: Chevy Big Block

Actual Engine Displacement: 10.3L/632

Crate Engine Cylinder Head Material: Aluminum

Engine Block Material: Cast iron

Advertised Compression Ratio: 11.0:1

Assembled: Yes

Engine Balance: Internal

Cam Style: Hydraulic roller, OE roller

Rear Main Seal Style: 1-piece

Intake Manifold Included: Yes

Intake Manifold Style: Carbureted

Cylinder Heads Included: Yes

Carburetor Included: Yes

Throttle Body Included: No

Distributor Included: Yes

Oil Pan Included: Yes

Valve Covers Included: Yes

Timing Cover Included: Yes

Water Pump Included: No

Harmonic Balancer Included: Yes

Flexplate Included: No

Flywheel Included: No

Air Cleaner Included: No

Spark Plugs Included: Yes

Spark Plug Wires Included: Yes

Computer Included: No

Wiring Harness Included: No

Supercharger Included: No

Remanufactured: No

Quantity: Sold individually.

Notes: Tall deck engine. Block has a mechanical fuel pump provision. Requires an internal balance flywheel/flexplate. The 1-piece rear main seal small block Chevy flywheel/ flexplate will not bolt to this engine. For further specifciations, please see the Charts & Guides above. O balance flywheel or flexplate must be used. See the suggested parts tab for the correct flywheel or flexplate to use with this engine.

Special Attention:

Included carburetor has a 1,250 cfm flow rate.

BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Dressed Long Block Crate Engines

BluePrint Pro Series Chevy 632 c.i.d. dressed long block crate engines have it all! You’d better take a firm grip, because these beauties run with 815 hp! The engines are a perfect choice for drivable and reliable high-end performance. Additionally, the Pro Series crate engines are manufactured under strict tolerances to provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. The engines are also dyno-tested and include the dyno sheets. For high-horsepower, big displacement engines, BluePrint Pro Series Chevy 632 c.i.d. dressed crate engines are the way to go!

Crate engine features include:

* New BluePrint Gen 6 tall deck block
* Internal balance
* Has a provision for a mechanical fuel pump
* One-piece rear main seal
* 4-bolt mains
* 4.600 in. bore
* Forged 4.750 in. stroke crankshaft
* Forged H-beam connecting rods
* Forged pistons
* 10:1 compression
* Billet distributor
* Hydraulic roller camshaft
– Lift = 0.698 in. / 0.698 in.
– Duration at 0.050 in. = 272 / 282 degrees
– Lobe Separation = 110 degrees
* Double roller timing chain
* Billet distributor
* Aluminum cylinder heads
