BluePrint Engines Ford 302 C.I.D. 361 HP Dressed Long Block Crate Engines BP302CTFD

Overview

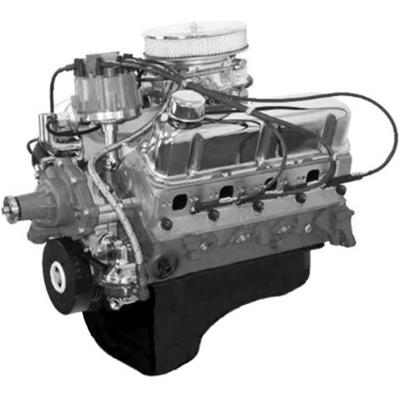

BluePrint Engines Ford 302 C.I.D. 361 HP Dressed Long Block Crate Engines

BluePrint Engines Ford 302 c.i.d. 361 HP dressed long block crate engines are ideal for daily drivers and cruising. Fully dressed, these engines makes up to 16 in. of vacuum and will work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel.

Details and specs:

* 361 hp/334 lbs.-ft.
* Compression Ratio: 9.4:1
* Aluminum heads
* Hydraulic roller cam
* Cast iron crankshaft
* Hypereutectic pistons

Block:

* New BluePrint cast iron block
* 4-bolt main
* 4.000 in. bore
* One-piece rear main seal
* Mechanical fuel pump provision

Rotating Assembly:

* 3.000 in. stroke
* OEM type 5.090 in connecting rods
* Hypereutectic pistons
* 50oz external balance

Cylinder Heads:

* BluePrint aluminum cylinder heads (HP9008)
* 60cc chamber
* 2.02 in. intake/1.60 in. exhaust valves
* 190cc intake/60cc exhaust runners

Roller Cam specs:

* .533 intake/.544 exhaust
* 215 intake/220 exhaust duration @ .050 – 114-degree lobe separation

Ignition timing:

* 10-16 degrees initial, 32-34 total

Also includes:

* Front sump oil pan
* Valve covers
* Timing cover
* Carburetor
* Standard rotation water pump
* Spark plugs and wires
* Distributor
* Intake
* Harmonic balancer
* Dyno test results shipped with engine

Note: Engine requires a V-belt standard rotation water pump and belt system. Timing cover is designed for standard rotation water pump only.
