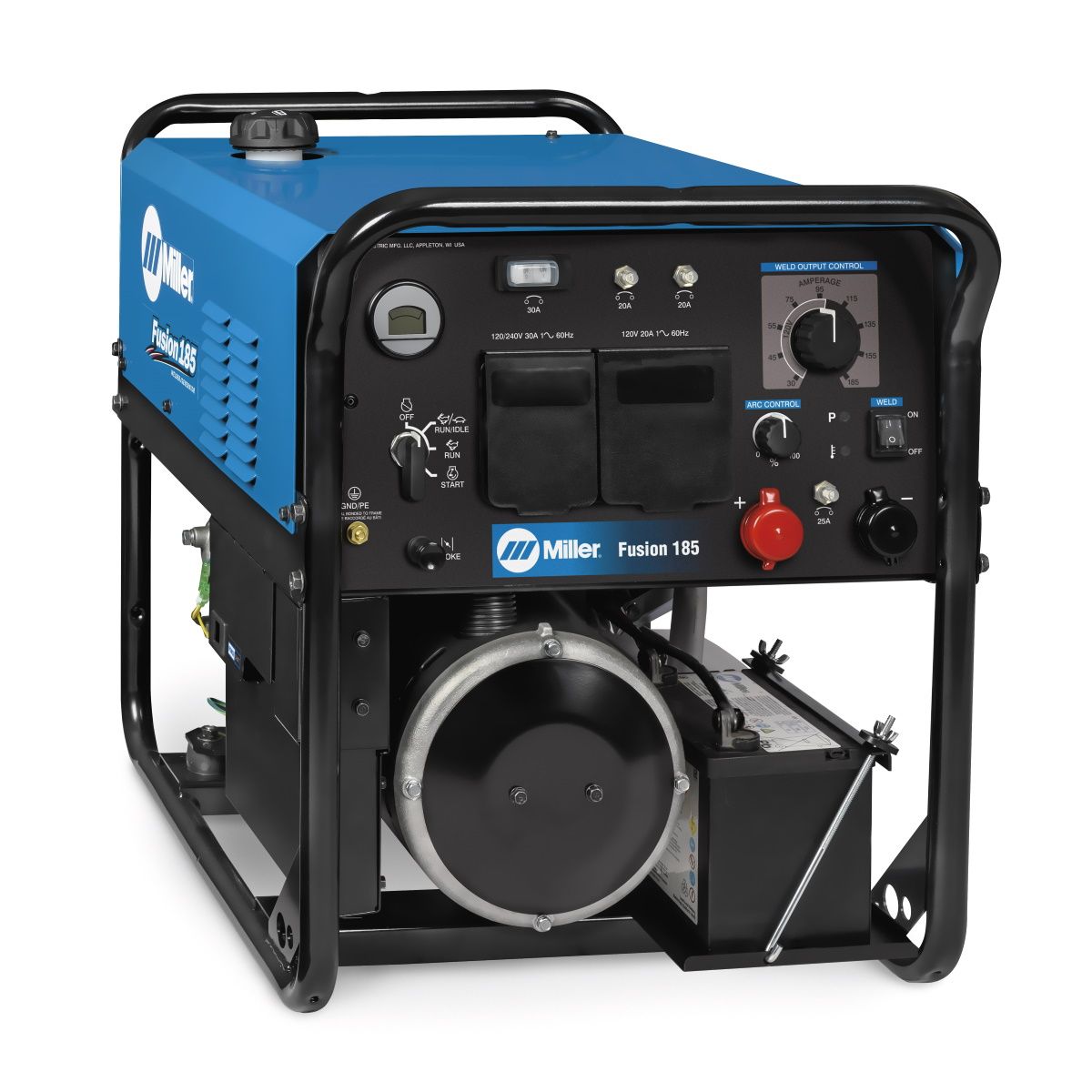

The Miller Fusion 185 offers the revolutionary “Power Shift” technology whereby the generator can be used on gasoline or 120/240V utility power. Power Shift allows the user to virtually weld anywhere – gasoline powered in the field or switch to outlet power when moving indoors. The MVP (multi-voltage plug) allows the generator to plug into 120V or 240V outlet power.
The Fusion 185 is capable of stick welding and air plasma cutting with the Spectrum 375. This generator features a 6,500 peak watt output, weighs only 222lbs, and electric starting method. This model also includes the recoil start as a backup to the electric start. The Fusion uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed.
Features
• Power Shift Technology
• Lightweight (242 lbs)
• 185A DC Output
• Gasoline or 120V/240V Input Power
Quick Specs
• Amperage Range: 30-185A DC
• Duty Cycle: 20% @ 185A, 100% @ 110A
• Engine: Kohler CH440 | 3.4 HP @ 3,600 RPM
• Fuel Capacity: 6.25 Gallons
| Brand | Miller |
|---|---|
| SKU | IMIL20180004 |
| MPN | MIL907781 |
| Mfgs MPN | 907781 |
| UPC | 715959700818 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Process | Stick |
| Max Amperage Output | 160 Amps |
| Usage | Industrial, Light Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 20% |
| Duty Cycle | 20% @ 160A |
| Portability | 246 lbs |
| Skill Level | Beginner, Weekend Warrior, Career Welder |
| Input Voltage | 120, 240 |
| Discontinued Product | No |
