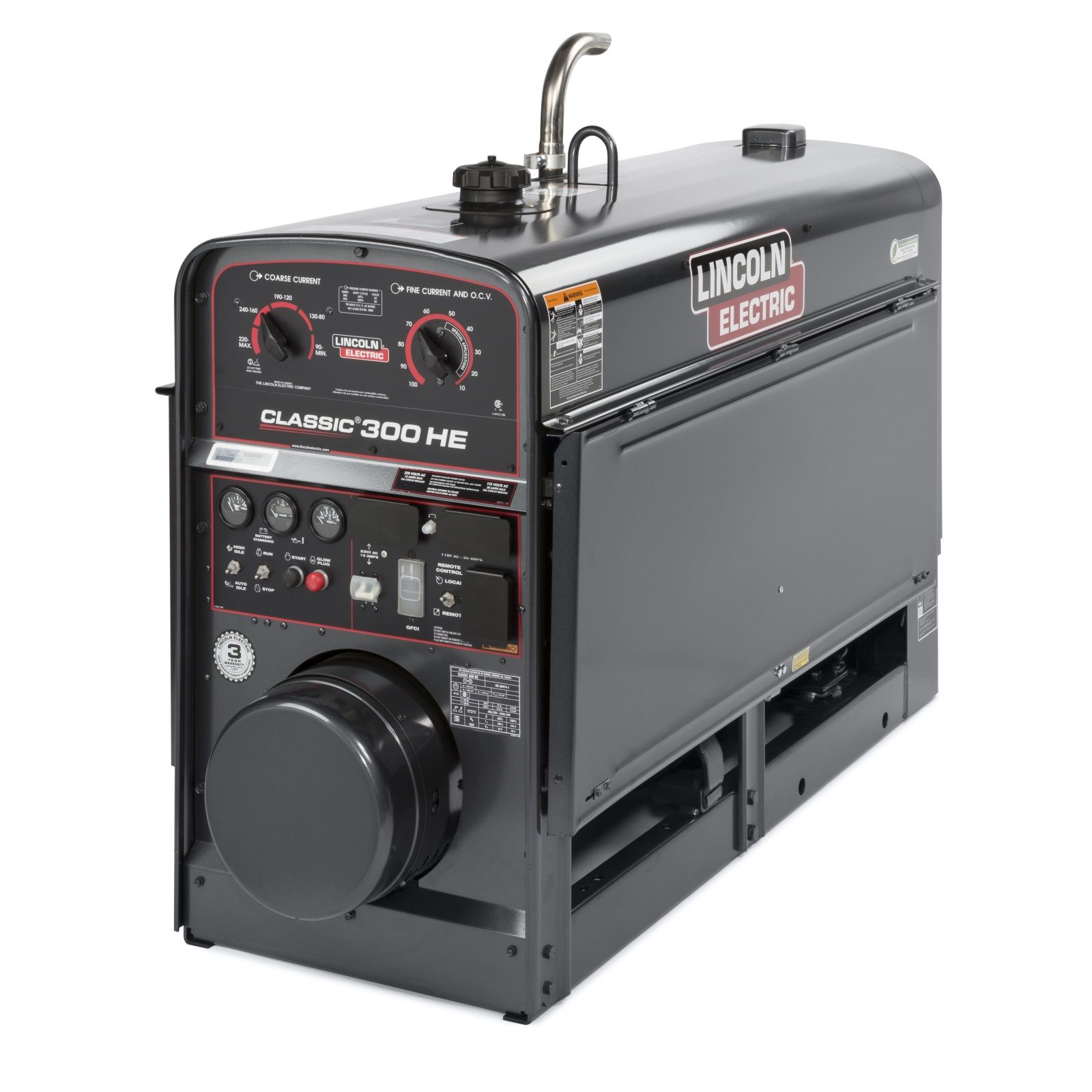

The Classic 300 HE features proven, simple and rugged construction, along with Lincoln Electric’s well-known pure DC generator design for excellent performance on pipe, construction, and maintenance welding.
Applications:
• Pipeline
• Construction
• Maintenance & Repair
Features:
• Meets all EPA Tier 4 Requirements
• 3-Cylinder, water-cooled, 1800 RPM Kubota Diesel Engine
• Big fuel savings compared to previous engine
• Produces the welding arc preferred by pipeline operators and contractors for precise control of the arc in demanding code applications
• All copper windings enhance arc stability for a really smooth, high performance arc
• 5 Current ranges with overlap for stick welding & other processes where slope control is desired (fine-tuning within each range)
• 300 Amps output @ 60% duty-cycle, welds up to 7/32″ fleetweld 5P + cellulosic and Excalibur low hydrogen electrodes.
| Brand | Lincoln |
|---|---|
| SKU | ILIN20140041 |
| MPN | LINK3198-1 |
| Mfgs MPN | K3198-1 |
| UPC | 015082565453 |
| Prop65 | Yes |
| Material | Mild Steel, Stainless Steel |
| Process | Air Carbon Arc Cutting and Gouging, Flux-Cored, MIG, Stick, TIG |
| Max Amperage Output | 350 |
| Usage | Industrial |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 100% |
| Duty Cycle | 100% at 250A |
| Portability | 1371 lbs |
| Skill Level | Career Welder |
| Discontinued Product | No |
