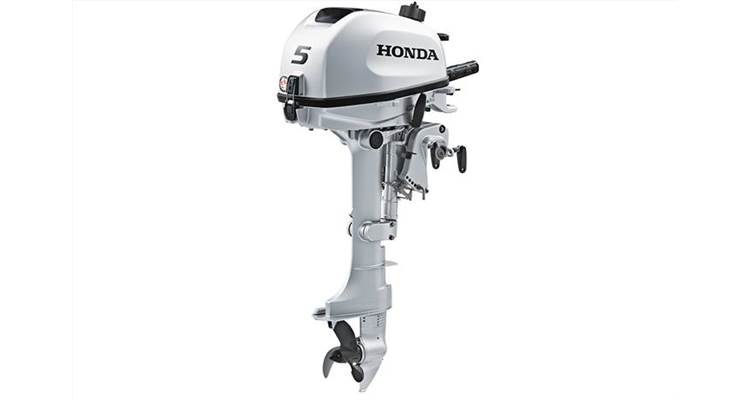

Buy Honda BF5DHLHC Outboard Motor Online
The Honda BF5DHLHC Outboard Motor delivers dependable four-stroke performance in a compact, portable package designed for dinghies, inflatables, skiffs, fishing boats, and auxiliary applications. Its 127 cc single-cylinder engine produces 5 horsepower at 5,000 rpm, providing responsive low-to-mid-range power while maintaining smooth, fuel-efficient operation. The 20-inch long-shaft configuration suits boats requiring a deeper transom setup, while manual recoil honda 5 hp outboard motor starting and tiller steering keep operation simple and direct.
Weighing approximately 62.4 pounds, this outboard is easy to transport using its large front-mounted carrying handle. The fold-down tiller handle also makes storage more convenient in compact spaces. A built-in 1.5-liter fuel tank supports easy portability, while evinrude etec 225 optional honda bf5dhshna 5 hp portable outboard motor auxiliary-tank capability is useful for longer journeys. Its standard 12-volt, 6-amp charging system can help power compatible onboard electronics such as navigation lights, fish finders, and GPS devices.
For added confidence, the Honda BF5DHLHC Outboard Motor includes an oil-pressure alert, over-rev limiter, neutral-start protection, shallow-water drive, and safety-lanyard stop switch. Low-vibration rubber mounts support quieter, more comfortable 5 hp honda outboard motor cruising, while water cooling with a thermostat promotes reliable engine temperature control. A standard three-blade aluminum propeller, forward-neutral-reverse shifting, and Honda’s proven marine honda outboard motor 5 hp engineering make it a versatile choice for recreational boating, fishing, and dependable backup propulsion needs.
Honda BF5DHLHC Outboard Motor Specifications
| Specification | Details |
|---|---|
| Engine Type | Four-stroke OHV, single cylinder, two valves |
| Displacement | 127 cc / 7.75 cu. in. |
| Rated Horsepower | 5 HP at 5,000 RPM |
| Full-Throttle Range | 4,500–5,500 RPM |
| Shaft Type | L-Type long shaft |
| Transom Height | 22.1 in. / 561 mm |
| Starting System | Manual recoil start |
| Steering | Tiller handle |
| Gear Shift | Forward–Neutral–Reverse |
| Gear Ratio | 2.08:1 |
| Fuel Delivery | Single carburetor |
| Fuel Type | Unleaded gasoline, minimum 86 pump octane |
| Built-In Fuel Capacity | 1.5 L / 0.33 Imperial gal. |
| External Fuel Tank Support | Optional auxiliary-tank capability |
| Ignition System | Digital CDI |
| Cooling System | Water cooling with thermostat |
| Charging System | Standard 12V, 6-amp alternator |
| Lubrication | Trochoid-pump pressure lubrication |
| Recommended Oil | SAE 10W-30 FC-W or API SJ and later |
| Oil Capacity | 0.55 L |
| Exhaust System | Underwater exhaust above the propeller |
| Steering Angle | 45 degrees left and right |
| Trim Adjustment | Five-stage transom-angle adjustment |
| Propeller | Three-blade aluminum propeller |
| Propeller Size | 7-7/8 × 6-3/4 in. |
| Overall Dimensions | 20.6 in. L × 13.7 in. W × 45.2 in. H |
| Dry Weight | 62.4 lb. / 28.3 kg |
| Safety Features | Oil-pressure alert, over-rev limiter, neutral-start protection and safety-lanyard stop switch |
| Warranty | 36 months for non-commercial use and 12 months for commercial use |
Product Benefits
Compact and Portable
At approximately 62.4 pounds, the Honda BF5DHLHC Outboard Motor is easy to transport, mount and store. Its large front carrying handle allows it to be carried from different positions, while the folding tiller handle makes storage easier in confined compartments.
Reliable Four-Stroke Performance
The 127 cc Honda four-stroke engine delivers dependable 5 HP performance with strong low-to-mid-range torque. It is suitable for dinghies, skiffs, inflatables, small fishing boats and auxiliary propulsion applications.
Easy Manual Starting
A decompression mechanism reduces the effort required to pull the recoil starter. This helps make cold and warm engine starts easier and more comfortable for the operator.
Convenient Fuel Options
The integrated 1.5-liter fuel tank provides a compact, self-contained setup for shorter trips. An optional auxiliary fuel tank can also be connected when additional operating range is needed.
Powers Essential Electronics
The standard 12-volt, 6-amp charging system can support compatible onboard accessories, including navigation lights, GPS units, fish finders and other small marine electronics.
Smooth and Quiet Operation
Redesigned rubber engine mounts help isolate vibration from the tiller handle and boat hull. This reduces hand fatigue, lowers operating noise and provides a more comfortable boating experience.
Enhanced Engine Protection
The oil-alert system warns the operator when low oil pressure is detected and limits engine speed to help prevent serious damage. An over-rev limiter provides additional protection against excessive engine speed.
Safer Everyday Operation
Neutral-start protection prevents the engine from starting while in gear. The safety-lanyard stop switch automatically shuts down the engine if the operator moves away from the helm.
Shallow-Water Capability
The shallow-water drive system helps reduce the risk of lower-unit or propeller damage when navigating near shorelines, boat ramps and other areas with limited water depth.
Easy Maintenance
A freshwater flush connection allows salt, sand and debris to be cleared from the cooling system when used with the required optional flush kit. The sacrificial anode also helps protect underwater metal components from corrosion.
Flexible Propeller Selection
A three-blade aluminum propeller is included as standard. Additional propeller options allow owners to better match the outboard to different boats, loads, speed requirements and operating conditions.
Long-Shaft Compatibility
The 20-inch shaft configuration is designed for boats requiring a long-shaft outboard. Correctly matching the shaft length to the boat’s transom supports better propulsion, handling and cooling-water intake performance.
What types of boats are suitable for the Honda BF5DHLHC Outboard Motor?
The Honda BF5DHLHC Outboard Motor is ideal for small fishing boats, dinghies, inflatable boats, skiffs, sailboats, and auxiliary-power applications. Its 20-inch long shaft should be matched with the boat manufacturer’s recommended transom height before installation.
Can the Honda BF5DHLHC Outboard Motor charge onboard electronics?
Yes. The Honda BF5DHLHC Outboard Motor includes a standard 12-volt, 6-amp charging system that can support compatible electronics such as GPS units, fish finders, navigation lights, and other small onboard accessories while the engine is operating.
